A RAJU BROS COMPANY

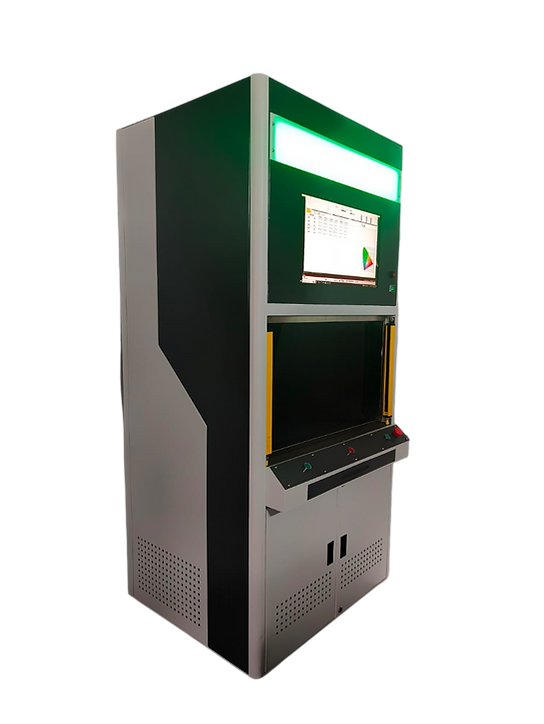

SAULT 100
SAULT-100 is a cutting-edge Vision Based LED Analyzer that utilizes vision-based technology to enhance your LED testing capabilities. With SAULT-100, you can take your LED testing to the next level and ensure that your products meet the highest standards of quality Upgrade your LED testing capabilities today with SAULT-100.
LED TESTING FEATURES
R,G,B(Red,Green,Blue) Value
CIE x,y and CIE u,v Coordinates
Chromaticity Graph
Hue
CCT
Intensity
Wavelength
No. of Led in ON state or OFF state
No. of Led.
Interchange of LED
LED Area
User friendly and integrable software
Field of View 500*500mm.
Can Test 100 LED's All Parameter in 800ms
NORMAL FEATURE
5 Different Mode of Testing
Constant Voltage and Constant Current Testing
3 different Voltage-current
0 to 80 VDC, 0.01 to 20Amp
sPECIFICATIONS
100 LED TESTING TIME
800 milliseconds
0-80V
SUPPLY VOLTAGE DC
SUPPLY CURRENT DC
0-20A
CAMERA
VISION CAMERA
SENSOR
5-12MP
FIELD OF VIEW
500*500
RGB VALUE
0-255
DIMENSION(L*B*H)
980*800*2100mm
WEIGHT
300 KG
CIE-X,CIE-Y COORDINATE
LED PATTERN & AREA
INTERCHANGE OF COLOR IN LED
HUE,CCT,WAVELENGTH,INTENSITY
NO. OF LED IN ON & OFF STATE
USER FRIENDLY & INTEGRABLE SOFTWARE
INDIVISUAL 5-MODE WITH VARIABLE VOLTAGE TESTING
COMMUNICATION-CAN,CAN FD,LIN,UDART,SPI,I2C ETC.
CONSTANT CURRENT & CONSTANT VOLTAGE MEASUREMENT
FLASHING IC-RENESAS,ELMOS,TI,STM,MICROCHIP,ATMEL ETC.
FLASHER:E1,E2 EMULATOR,SEGGER,NET IMPRESS, PICKET 5,XDS110 ETC

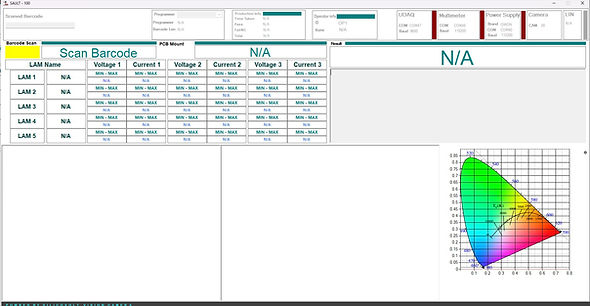

ADAPTIVE USER-INTERFACE OF SOFTWARE
